Available Types: SPZ, SPA, SPB, SPC, 3V, 5V, 8V
Standard: ISO 4184 / BS 3790
Available Grades: Normal
Other Names: Wedge wrapped v-belt

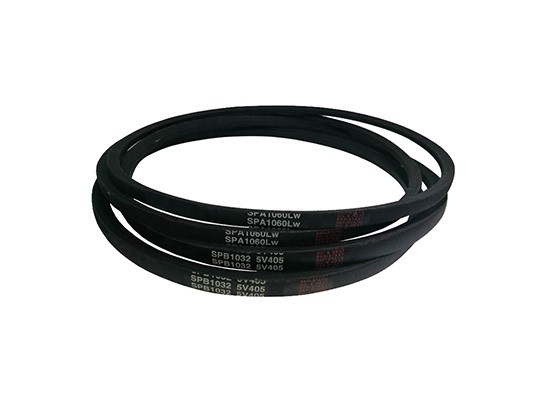

Narrow Wrapped V-Belt is specially designed for heavy-duty drives.
Cross-Sectional Sizes
| Section | Top Width(mm) | Thickness(mm) | Angle(Degree) |
| SPZ | 10.0 | 8.0 | 40 |
| SPA | 13.0 | 10.0 | 40 |
| SPB | 17.0 | 14.0 | 40 |
| SPC | 22.0 | 18.0 | 40 |
| 3V | 9.7 | 8.0 | 40 |
| 5V | 15.8 | 14.0 | 40 |
| 8V | 25.4 | 23.0 | 40 |
Features
- High anti-heat, anti-oil and anti-wearing;
- Temperature resistance from -35°C to +80°C;
- Extremely small pulley diameters;
- High lateral stiffness;
- Strong durability;
- Prevent the generation of the static and keep safe use.
Application
Industrial drives such as pumps, generators, ball-mills, crushers, compressors etc.
