Available Types: Z, A, B, C, D, E
Standard: ISO 4184 / BS 3790
Available Grades: Normal
Other Names: Normal V-Belt, Classical Belt

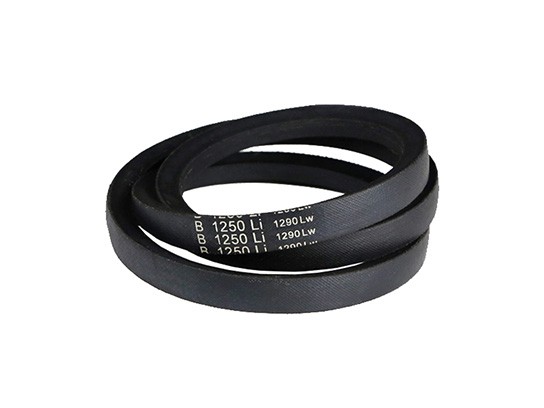

Classical Wrapped V-Belt is specially designed for industrial drives.
Cross-Sectional Sizes
| Section | Top Width(mm) | Thickness(mm) | Angle(Degree) |
| Z/O/M | 10.0 | 6.0 | 40 |
| A | 13.0 | 8.0 | 40 |
| B | 17.0 | 11.0 | 40 |
| C | 22.0 | 14.0 | 40 |
| D | 32.0 | 19.0 | 40 |
| E | 38.0 | 23.0 | 40 |
Features
- Anti-static,heat-resistant,wear-resistant;
- High strength;
- Low elongation;
- Small matching tolerance;
- Good abrasion resistance;
- With little generation of powder;
- Providing clean power transmission;
- High transmission efficiency under the operating.
Application
Industrial drives such as pumps, generators, ball-mills, crushers, compressors etc.
