Available Types: AJ, BJ, CJ, RAX, RBX, RCX
Standard: ISO 4184 / BS 3790
Available Grades: Normal
Other Names: Banded Wrapped V-Belt, Banded Belt, Joined V-Belt

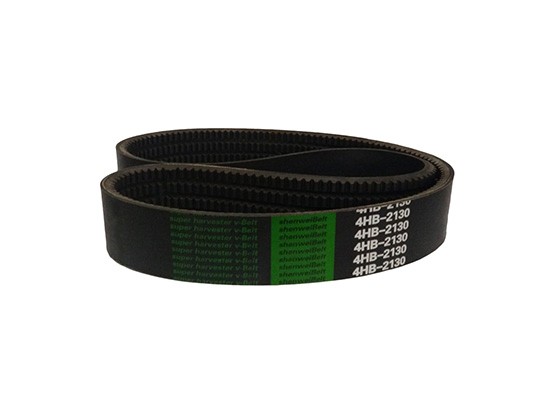

Banded Classical V-Belt is specially designed for industrial drives.
Cross-Sectional Sizes
| Section | Top Width(mm) | Thickness(mm) | Angle(Degree) |
| AJ | 13.0 | 10.0 | 40 |
| BJ | 17.0 | 13.0 | 40 |
| CJ | 22.0 | 16.0 | 40 |
| RAX | 13.0 | 10.0 | 40 |
| RBX | 17.0 | 13.0 | 40 |
| RCX | 22.0 | 16.0 | 40 |
Features
- Enhanced power transmission capacity up to 25%;
- Lesser number of belts required as compared to multiple single-belt drive;
- High adhesion strength between tie band and the belts;
- Eliminates chance of a mismatch in the length, as observed in multiple single-Belt drive;
- Temperature range: -18ºC to +80ºC;
- Antistatic, oil and heat resistant.
Application
Vertical shaft drives, agricultural drives, stone crushers, compressors, generator sets etc.
